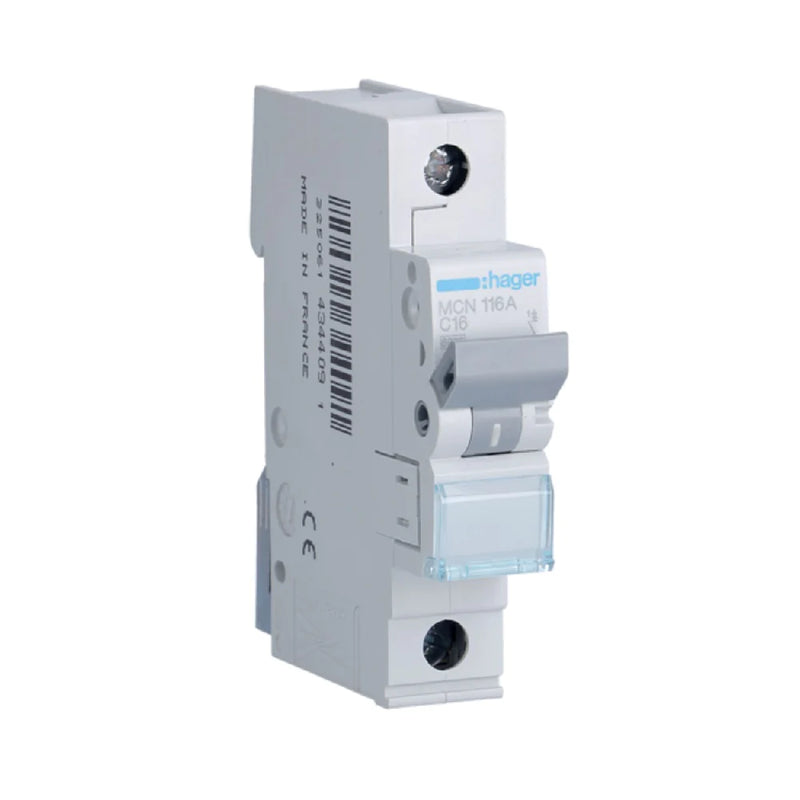

MCB Circuit Breaker Hager MCN116 6kA 1Pole - 16A

MCB 1P 6kA C-16A 1M

Technical Characteristics close all Architecture Number of protected poles: 1 Number of poles: 1 P Type of pole: 1 P Curve: C Connectivity Bottom connection alignement for modular devices: Aligned terminal Top connection alignement for modular devices: Aligned terminal Main electrical features Frequency: 50/60 Hz Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA Type of supply voltage: AC Rated operational voltage Ue: 230/400 V Voltage Rated insulation voltage: 500 V Rated impulse withstand voltage: 4000 V Electric current Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1: 6 kA Rated service breaking capacity Ics AC according IEC 60898-1: 6 kA Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-2: 6 kA Magnetic regulating currrent at 40° C: 5/10 In min/maxi threshold value of the AC thermal operation: 1,13/
