Fischer Wedge Anchor FWA Zinc Plated

The cost-effective fixation without approval - for use in non-cracked concrete

Advantages

• The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• Available with metric and imperial threads

Applications

• Steel constructions
• Guard rails
• Consoles
• Ladders
• Cable trays
• Machines
• Staircases
• Gates
• Façades

Building materials

• Concrete C20/25, non-cracked

* You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality

• The FWA is suitable for pre-positioned and push-through installation.
• Prior to installation, place the hex nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hex nut).

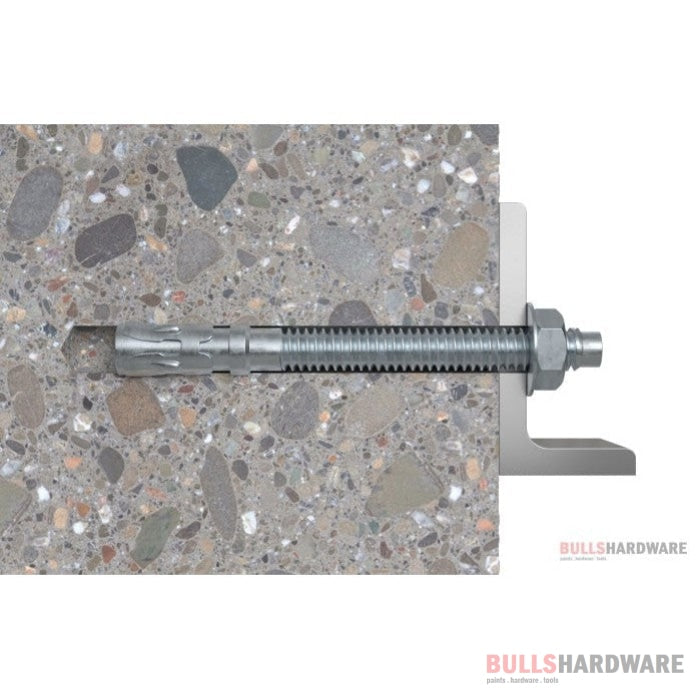

• When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.

Product Description

Advantages

• The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• Available with metric and imperial threads
