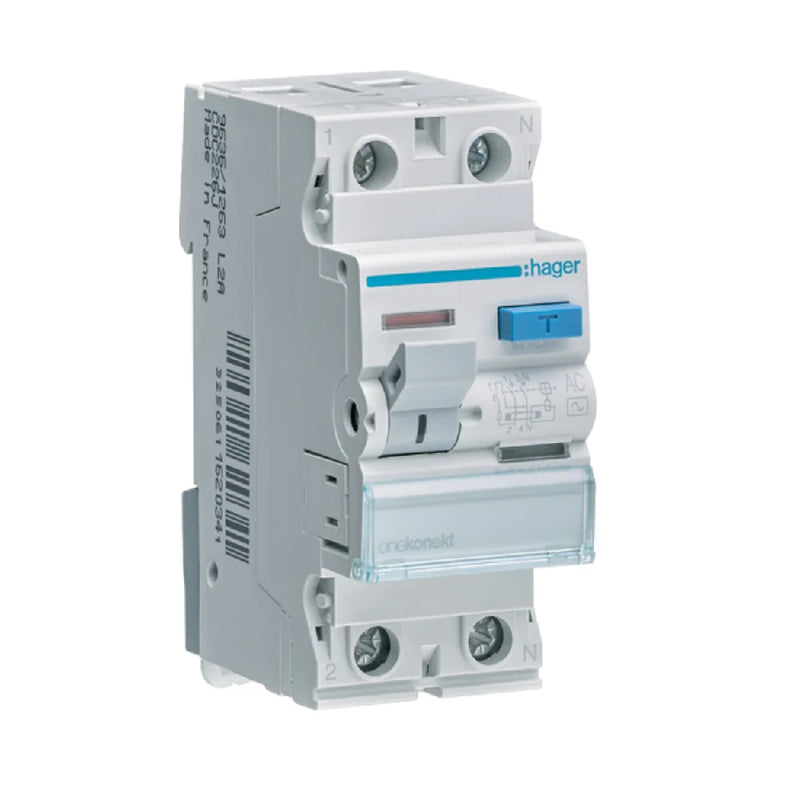

ELCB / RCCB Hager 2-Pole 63A 30mA - CDC264J

CDC264J RCCB 2P 63A 30mA AC

Technical Characteristics close all Architecture Neutral position: right Number of poles: 2 P Fixing mode: Din-Rail Controls and indicators Ground fault signalisation: no With fault indicator: yes Main electrical features Frequency: 50 Hz Electric current Rated residual operating current: 30 mA Withstand not tripping on 8-20 ?s wave: 0,25 kA Breaking and opening capacity: 1500 A Rated conditional short-circuit current Inc according to EN 61008-1: 6 kA
